Battery Charger - EPS240W Series

Input Voltage:115/230VAC±15%
Rated Output Voltage: +12V、+24V、+36V、+48V
Rated Output Power: 240W

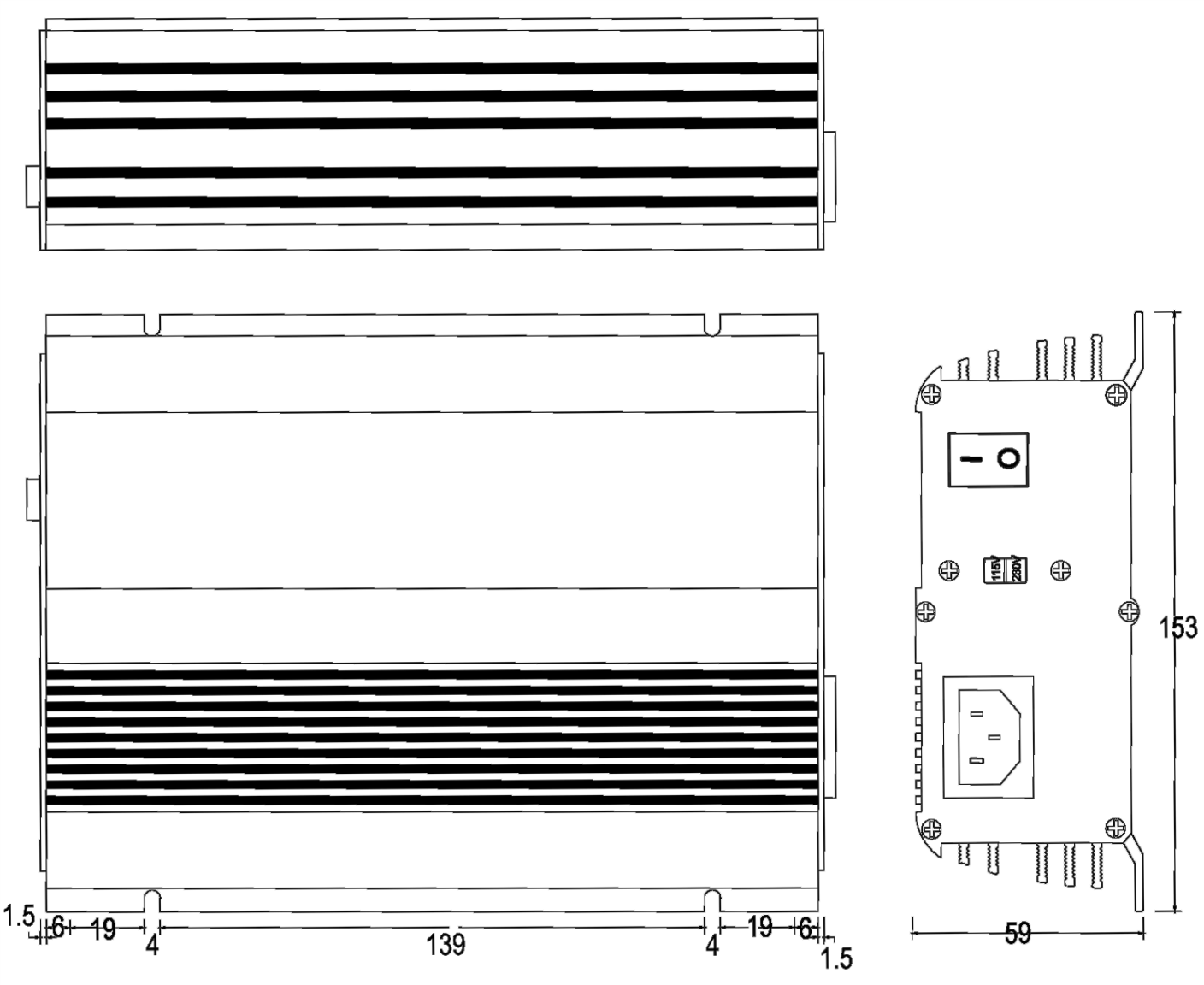

Dimensions:200(L)x153(W)x59(H)mm
Model : EPS240W Series



This series includes EPS1220, EPS2410, EPS3606, and EPS4805 that with
115/230AC±15% selectable
input range and complete protection design. Our Lead-Acid Battery Chargers are used by electric vehicle

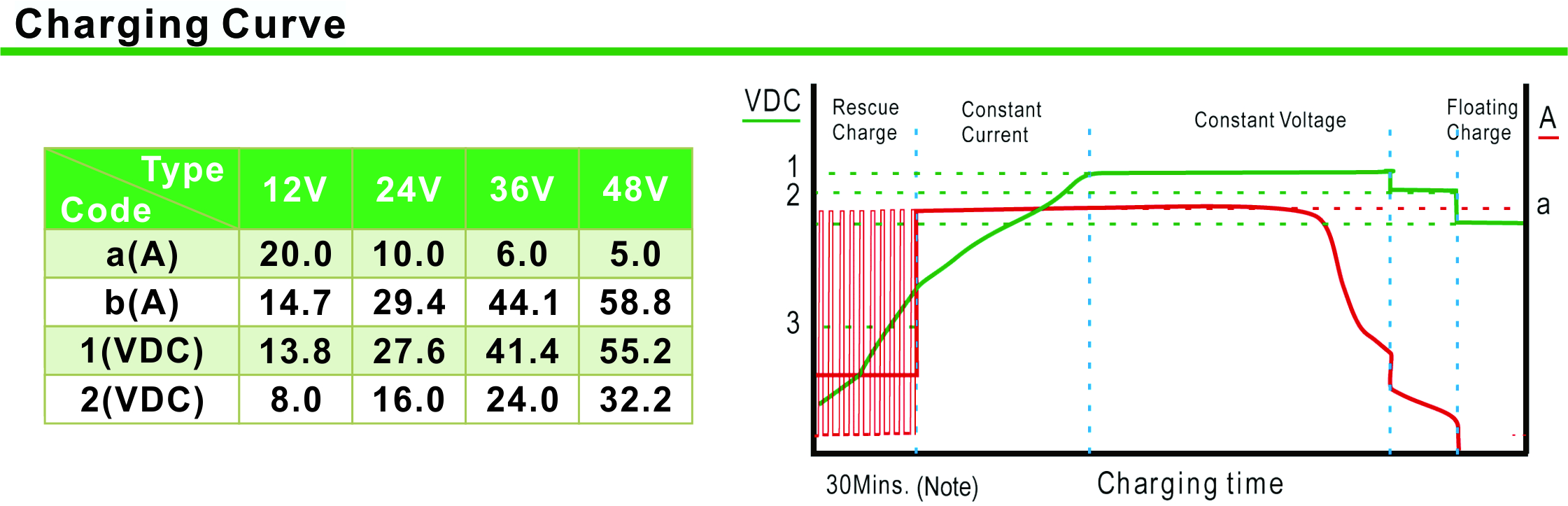

and medical facilities appliances etc. These Lead-Acid Battery Chargers have built-in 5-step charging control
accomplish the missions. The Lead-Acid Battery Chargers not only charging a battery but also lengthen life cycle
and advance efficiency of battery.

DATASHEET: d_icon_pdf.gif




INPUT

Input voltage:
115/230AC±15% Selectable
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery
Reverse polarity protec:Autorecovery

Model

Charging Voltage

Charging Current

Line Reg.

Load Reg.

Eff.

Over Voltage Protection

Boost

Float

EPS1220

14.7VDC

13.8VDC

20A Max.

±1%

±1%

84%

18~21VDC

EPS2410

29.4VDC

27.6VDC

10A Max.

±1%

±1%

86%

32~35VDC

EPS3606

44.1VDC

41.4VDC

6A Max.

±1%

±1%

86%

48~52VDC

EPS4805

58.8VDC

55.2VDC

5A Max

±1%

±1%

86%

62~70VDC







Features
Convection cooled
RoHS compliance
3 - year warranty
Over voltage protection
Over current protection
Short circuit protection
3-stage charging control
Reverse polarity protection
Sparkle free design
Built-in MCU with smart charging control


Operating Environment
Operating temperature: -40 to 40 degrees
Operating humidity: non-condensing 5% to 95% relative humidity


Application
Smart 5-step charging control accomplish the charger not only charging a battery but lengthen life cycle
and advance efficiency of battery. Switching mode design features high power factor, high efficiency and
lightweight construction. Charging voltage ranged from 12VDC to 48VDC, Wattage ranged from 90W to 500W.
All models are compliant to RoHS.
