Name: DIN Rail 120W, Single Output, Redundant function
Brand: Acro Engineering Incorporation
SKU: AD1120FR Series

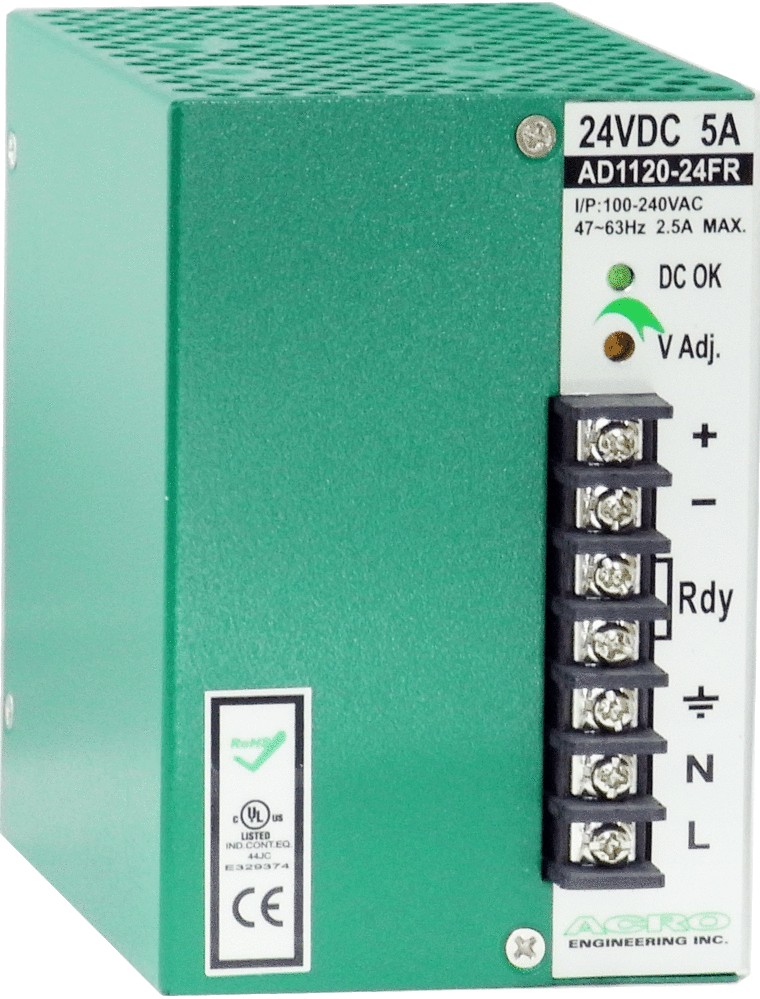

DIN Rail 120W, Single Output, Redundant function

Input Voltage:100~240VAC/120~370VDC
Rated Output Voltage: +12V、+24V、+48V
Rated Output Power: 120W
Dimension:121(D)x75(W)x110(H) mm

Model : AD1120FR Series

Q'ty :

Our DIN Rail power supplies are used for electric machine and battery charger appliances. Rigid and compact design not only space saving but also satisfy the industrial application. Most of the models are built-in power ready signal and O-ring diode for redundant application. The complete output protection circuit including over voltage, overload and short circuit protections. All models are RoHS compliance, CE marking and meet UL508 requirement.

DATASHEET:

INPUT
Input voltage:100~240VAC/120~370VDC
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery

Model	Output Voltage Adjustment	Loading			Ripple Noise	Efficiency	Over Voltage Protection
Model	Output Voltage Adjustment	Min.	Rated	Max.	Ripple Noise	Efficiency	Over Voltage Protection
AD1120-12FR	+12VDC±10%	0A	10A	10A	100mVp-p	80%	15~17VDC
AD1120-24FR	+24VDC±10%	0A	5.0A	5.0A	150mVp-p	84%	27~30VDC
AD1120-48FR	+48VDC±10%	0A	2.5A	2.5A	250mVp-p	83%	52~57VDC

Features

Innovative design of industrial-grade power supply rail

Natural convection air cooling

High voltage protection

Current overload protection

Short circuit protection

Din rail / retainer lock with fixed protection

Selective warning signals (dry contact) / redundancy

High power density

High reliability

Small size, high efficiency, low cost

Comply with RoHS / UL / CE Standard

3-year quality warranty

Operating Environment

Operating temperature: -40 to 40 degrees

Operating humidity: non-condensing 5% to 95% relative humidity

Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the
Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution of
the power chassis, it saves a lot of space and be more convenient to make wiring distribution.
This product is suitable for automatic control systems, factory automation, industrial control,
instrumentation equipment, electromagnetic actuators and other DC motor load and according to the
latest requirements and standards designed.
