Name: DIN Rail 100W, Single Output
Brand: Acro Engineering Incorporation
SKU: AD1100F Series

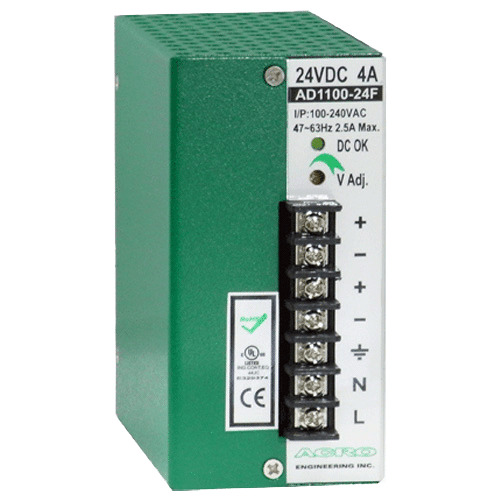

DIN Rail 100W, Single Output

Input Voltage:100~240VAC/120~370VDC
Rated Output Voltage: +12V、+24V、+48V
Rated Output Power: 100W
Dimension:110(H)X121(D)X56(W)mm

Model : AD1100F Series

Q'ty :

This series includes AD1100-12F, AD1100-24F and AD1100-48F that with 100-240VAC universal input range and
complete protection design. The DIN rail / bracket mounting solution and compact dimensions let the models be suitable
for distribution board that supplying power source for PLC, HMI and I/O devices. Long life aluminum electrolytic capacitor,
100% burn-in testing and moisture proof coating to let the industrial power supply series be rugged power supply,
robust power supply and heavy duty power supply. All models are RoHS compliance, CE marking and meet UL508 requirement.

DATASHEET:

INPUT
Input voltage:100~240VAC/120~370VDC
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery

Model	Output Voltage Adjustment	Loading			Ripple Noise	Efficiency	Over Voltage Protection
Model	Output Voltage Adjustment	Min.	Rated	Max.	Ripple Noise	Efficiency	Over Voltage Protection
AD1100-12F	+12VDC±10%	0A	8.0A	8.0A	100mVp-p	80%	17VDC Max.
AD1100-24F	+24VDC±10%	0A	4.0A	4.0A	150mVp-p	81%	30VDC Max.
AD1100-48F	+48VDC±10%	0A	2.0A	2.0A	250mVp-p	83%	56VDC Max.

Features

Innovative design of industrial-grade power supply rail

Natural convection air cooling

High voltage protection

Current overload protection

Short circuit protection

Din rail / retainer lock with fixed protection

Selective warning signals (dry contact) / redundancy

High power density

High reliability

Small size, high efficiency, low cost

Comply with RoHS / UL / CE Standard

3-year quality warranty

Operating Environment

Operating temperature: -40 to 50 degrees

Operating humidity: non-condensing 5% to 95% relative humidity

Application

Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount
the Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution
of the power chassis, it saves a lot of space and be more convenient to make wiring distribution.
This product is suitable for automatic control systems, factory automation, industrial control,
instrumentation equipment, electromagnetic actuators and other DC motor load and according
to the latest requirements and standards designed.
