• DIN Rail Power Supply 20~24W, Single Output

DIN Rail 20~24W, Single Output

Input Voltage:100~240VAC/120~370VDC
Rated Output Voltage: +5V、+12V、+24V
Rated Output Power: 20~24W
Dimension:75.5(D)x45(W)x96(H) mm

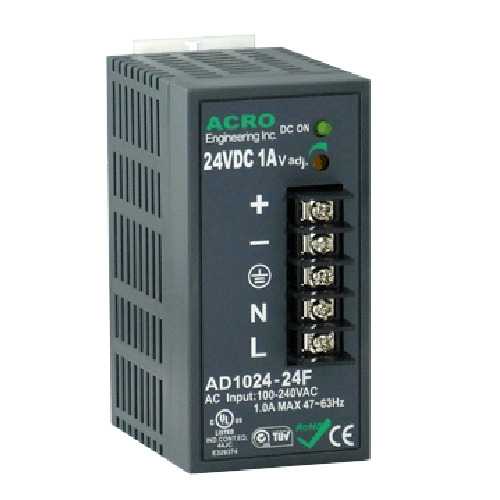

Model : AD1024F series


This series includes AD1020-05F, AD1024-12F and AD1024-24F that with 100-240VAC universal
input range and complete protection design. The DIN rail / bracket mounting solution and compact
dimensions let the models be suitable for distribution board that supplying power source for PLC,
HMI and I/O devices. Long life aluminum electrolytic capacitor, 100% burn-in testing and moisture
proof coating to let the industrial power supply series be rugged power supply, robust power supply
and heavy duty power supply.  All models are RoHS compliance, CE marking and meet UL508
requirement.


DATASHEET:



INPUT
Input voltage:100~240VAC/120~370VDC
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery







Model

Output Voltage Adjustment

Loading

Ripple Noise

Efficiency

Over Voltage Protection

Min.

Rated

Max.

AD1020-05F

+5VDC±10%

0A

4.0A

4.0A

50mVp-p

78%

7VDC Max.

AD1024-12F

+12VDC±10%

0A

2.0A

2.0A

100mVp-p

82%

20VDC Max.

AD1024-24F

+24VDC±10%

0A

1.0A

1.0A

150mVp-p

86%

40VDC Max.


Features

  Rugged, robust and heavy duty design of industrial grade power supply

  Convection air cooling

  Over voltage protection

  Overload protection

  Short circuit protection

  DIN rail / bracket mounting solution

  High power density

  High reliability

  Small size, high efficiency, low cost

  Comply with RoHS / UL / CE Standard

  3-year quality warranty



Operating Environment

  Operating temperature: -40℃ to 50℃ degrees

  Operating humidity: non-condensing 5% to 95% relative humidity







Application
100-240VAC universal input range and complete protection design. The DIN rail / bracket mounting solution and
compact dimensions let the models be suitable for distribution board that supplying power source for PLC, HMI and
I/O devices. The DIN rail mounting solution could let the power supply be snap-on TS35 DIN rail easily.
And bracket mounting solution could let user mount the PSU on a panel or wall while there is no DIN rail.
