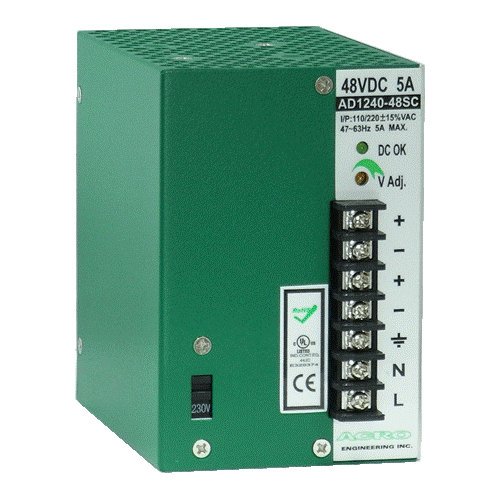

DIN Rail 240W, Single Output, without cooling fan

This series includes AD1240-24SC and AD1240-48SC that with 115/230VAC selectable input range and
complete protection design. The DIN rail / bracket mounting solution and compact dimensions let the models
be suitable for distribution board that supplying power source for PLC, HMI and I/O devices. Long life aluminum
electrolytic capacitor, 100% burn-in testing and moisture proof coating to let the industrial power supply series
be rugged power supply, robust power supply and heavy duty power supply. All models are RoHS compliance,
CE marking and meet UL508 requirement.

DATASHEET:

INPUT
Input voltage:115/230VAC Selectable
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC
OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery

Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the
Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution of
the power chassis, it saves a lot of space and be more convenient to make wiring distribution.
This product is suitable for automatic control systems, factory automation, industrial control,
instrumentation equipment, electromagnetic actuators and other DC motor load and according to the
latest requirements and standards designed.
