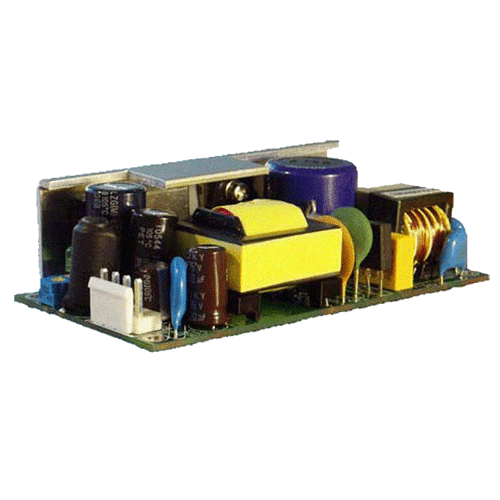

Name: Open Frame Power Supply 60W, Single Output
Brand: Acro Engineering Incorporation
SKU: AO1060F Series

Open Frame Power Supply 60W, Single Output

Input Voltage:100~240VAC
Rated Output Voltage: +12V、+24V、+28V、+48V
Rated Output Power: 45~60W
Dimension:101(L)x51(W)x30.5(H)mm

Model : AO1060F Series

Q'ty :

Our Open Frame power supplies are used for traffic light and pedestrian signal etc. These series provide engineers
with a power platform with the flexibility to meet virtually any design requirement. High power density design with
universal AC input range, high reliability, high efficiency and meet EN61000-3-2 requirements. Output wattage ranged
from 20W~300W, channels ranged from sigle to quad and new models are developing continuely. For reducing
environmental impact, all models are compliant to RoHS regulations.

DATASHEET:

INPUT
Input voltage: 100~240VAC/120~370VDC
Input frequency: 47~63Hz
Inrush current: 22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC): 25mS Min.
Over voltage protection: Autorecovery
Overload protection: Power limited
Short circuit protection: Autorecovery
Reverse polarity protection: Autorecovery
Over temperature protection: Power limited

Model

O/P Voltage Adjustment

Loading

Ripple Noise

Efficiency

Over Voltage Protection

Min.

Rated

Peak

AO1060-12F

+12VDC±10%

0A

5.0A

5.0A

100mVp-p

78%

20 VDC Max.

AO1060-24F

+24VDC±10%

0A

2.5A

2.5A

150mVp-p

80%

30 VDC Max.

AO1060-28F

+28VDC±10%

0A

2.1A

2.1A

200mVp-p

80%

37 VDC Max.

AO1060-48F

+48VDC±10%

0A

1.2A

1.2A

250mVp-p

80%

60 VDC Max.

Features
High power density
Universal input range
Convection cooled
RoHS compliance
3 - year warranty
Great reliability
Over voltage protection
Overload protection
Short circuit protection

Operating Environment
Operating temperature: -40 to 35 degrees
Operating humidity: non-condensing 5% to 95% relative humidity

Application
High power density design with universal AC input range, high reliability, high efficiency and
meet EN61000-3-2 requirements. Output wattage ranged from 20W~300W, channels ranged
from single to quad and new models are developing continually. For reducing environmental
impact, all models are compliant to RoHS regulations.

Related Products

U-Frame Power Supply 60W, Single Output

Model : AU1060A Series

Open Frame Power Supply 60W, Dual Output

Model : AO2060C1F Series

Model	O/P Voltage Adjustment	Loading			Ripple Noise	Efficiency	Over Voltage Protection
Model	O/P Voltage Adjustment	Min.	Rated	Peak	Ripple Noise	Efficiency	Over Voltage Protection
AO1060-12F	+12VDC±10%	0A	5.0A	5.0A	100mVp-p	78%	20 VDC Max.
AO1060-24F	+24VDC±10%	0A	2.5A	2.5A	150mVp-p	80%	30 VDC Max.
AO1060-28F	+28VDC±10%	0A	2.1A	2.1A	200mVp-p	80%	37 VDC Max.
AO1060-48F	+48VDC±10%	0A	1.2A	1.2A	250mVp-p	80%	60 VDC Max.
