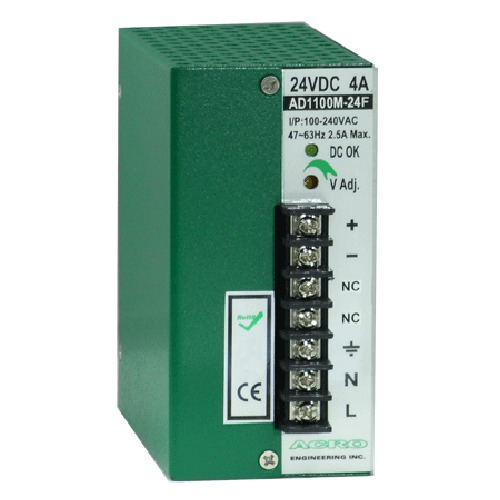

Name: DC Motor Power Supply,100W, Single Output
Brand: Acro Engineering Incorporation
SKU: AD1100MF Series

DC Motor Power Supply,100W, Single Output

Input Voltage:100~240VAC/120~370VDC
Rated Output Voltage: +24V、+48V、+72V
Rated Output Power: 100W
Dimension:110(H)X121(D)X56(W)mm

Model : AD1100MF Series

Q'ty :

Our DC Motor power supplies are used for motion control system such as mechanical arm and
elevator controller etc. High peak output current designed for operation requirement of DC motor.
Built-in CEMF (Counter-Electromotive Force) damper to protect motor driver and power supply.
Rigid and compact design not only space saving but also satisfy the requirement of industrial application.
All models are RoHS compliance, CE marking and meet UL508 requirement. The complete protection
including over voltage, overload and short circuit protection.

DATASHEET:

INPUT
Input voltage:100~240VAC/120~370VDC
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery

Model	O/P Voltage Adjustment	Loading			Ripple Noise	Eff.	Over Voltage Protection	MOQ
Model	O/P Voltage Adjustment	Min.	Rated	Peak	Ripple Noise	Eff.	Over Voltage Protection	MOQ
AD1100M-24F	+24VDC±10%	0A	4.0A	8.0A	150mVp-p	80%	7VDC Max.	300
AD1100M-48F	+48VDC±10%	0A	2.0A	4.0A	250mVp-p	80%	20VDC Max.	300
AD1100M-72F	+72VDC±10%	0A	1.0A	2.8A	500mVp-p	80%	40VDC Max	300

Features

High power density

Universal input range

Convection cooled

RoHS compliance

3 - year warranty

Great reliability

DIN rail / Wall bracket mounting solution

Over voltage protection

Overload protection

Short circuit protection

Build-in O-ring diode

High peak current ( 2 times of rated current)

Operating Environment

Operating temperature: -40 to 50 degrees

Operating humidity: non-condensing 5% to 95% relative humidity

Application

Our DC Motor Power Supplies are specialized to apply motion control system such as mechanical arm
and elevator controller etc. Rigid and compact design feature space saving and requirement of
industrial application. In addition, our DC Motor Power Supplies have built-in CEMF
(Counter-Electromotive force) damper to protect motor driver and power supply.
