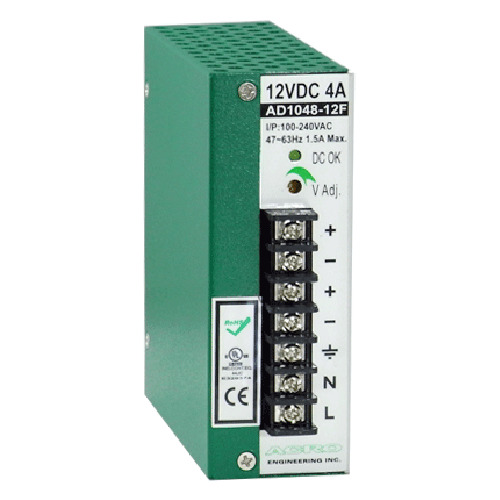

DIN Rail 40~48W, Single Output

Input Voltage:100~240VAC/120~370VDC
Rated Output Voltage: +5V,+12V,+24V,+48V
Rated Output Power: 40~48W
Dimension:121(D)x40(W)x110(H)mm
Model : AD1048F Series


This series includes AD1040-05F, AD1048-12F, AD1048-24F and AD1048-48F that with 100-240VAC
universal input range and complete protection design. The DIN rail / bracket mounting solution and
compact dimensions let the models be suitable for distribution board that supplying power source for
PLC, HMI and I/O devices. Long life aluminum electrolytic capacitor, 100% burn-in testing and moisture
proof coating to let the industrial power supply series be rugged power supply, robust power supply
and heavy duty power supply.  All models are RoHS compliance, CE marking and meet UL508 requirement.
Built-in O-ring diode and dry contact alarm signal (relay) to achieve redundant funct
ion.


DATASHEET:




INPUT
Input voltage:100~240VAC/120~370VDC
Input frequency:47~63Hz
Inrush current:22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC):20mS Min.
Over voltage protection:Autorecovery
Overload protection:Power limited
Short circuit protection:Autorecovery



Model

O/P Voltage Adjustment

Loading

Ripple Noise

Efficiency

Over Voltage Protection

Min.

Rated

Peak

AD1040-05F

+5VDC±10%

0A

8A

8A

50mVp-p

78%

6~7VDC

AD1048-12F

+12VDC±10%

0A

4A

4A

100mVp-p

80%

15~17VDC

AD1048-24F

+24VDC±10%

0A

2A

2A

150mVp-p

82%

27~30VDC

AD1048-48F

+48VDC±10%

0A

1A

1A

250mVp-p

82%

52~57VDC


Features

Innovative design of industrial-grade power supply rail

Natural convection air cooling

High voltage protection

Current overload protection

Short circuit protection

Din rail / retainer lock with fixed protection

Selective warning signals (dry contact) / redundancy

High power density

High reliability

Small size, high efficiency, low cost

Comply with RoHS / UL / CE Standard

3-year quality warranty



Operating Environment

Operating temperature: -40 to 50 degrees

Operating humidity: non-condensing 5% to 95% relative humidity




Application
Designed for industrial applications. With the rugged and thoughtful fixed design, you can mount the
Power Supply on TS35 DIN rail, wall, or any surface. Designing for the size and wiring distribution of
the power chassis, it saves a lot of space and be more convenient to make wiring distribution.
This product is suitable for automatic control systems, factory automation, industrial control,
instrumentation equipment, electromagnetic actuators and other DC motor load and according to the
latest requirements and standards designed.
