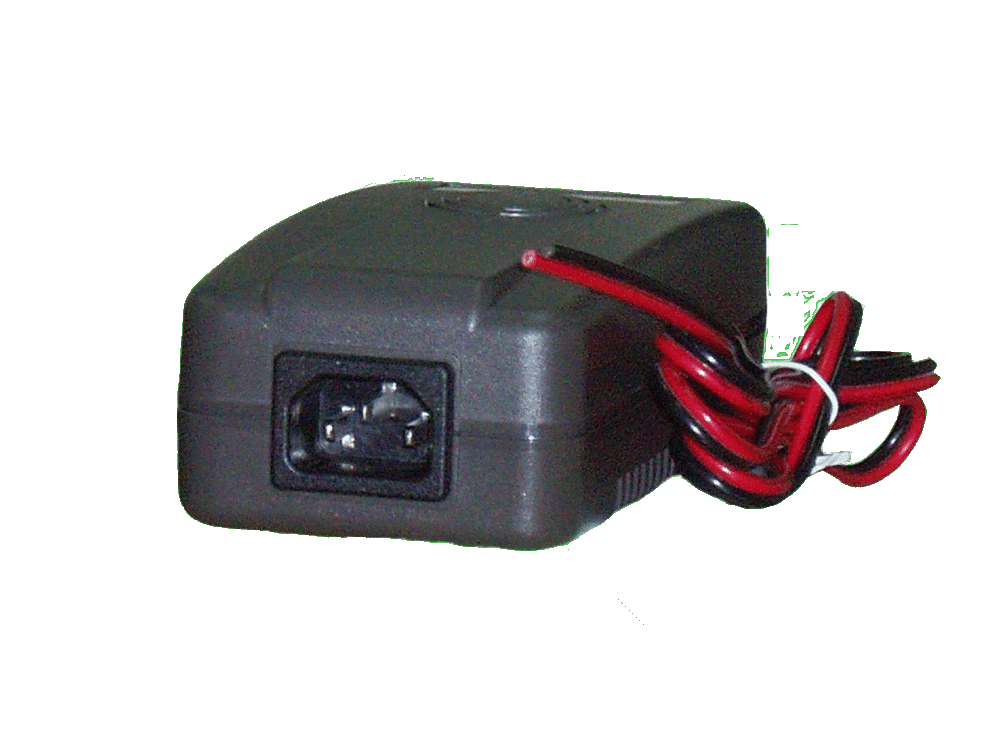

Battery Charger 60W, Single Output

Input Voltage:100~240VAC / 120~370VDC
Rated Output Voltage: +12V、+24V
Rated Output Power: 60W
Dimension:47(H)X147(D)X74(W)mm
Model : AE1060CF Series


This series includes AE1060C-12FC and AE1060C-24FC that with 100-240VAC universal input range
and
complete protection design. Our Lead-Acid Battery Chargers are used by electric vehicle and medical
facilities appliances etc. These Lead-Acid Battery Chargers have built-in smart 5-step charging control
accomplish the missions. The Lead-Acid Battery Chargers not only charging a battery but also lengthen
life cycle and advance efficiency of battery.


DATASHEET:



INPUT
Input voltage: 100~240VAC/120~370VDC
Input frequency: 47~63Hz
Inrush current: 22A/115VAC
(Cold start) 44A/230VAC

OUTPUT
Hold-up time (Full load@230VAC): 20mS Min.
Over voltage protection: Autorecovery
Overload protection: Power limited
Short circuit protection: Autorecovery
Reverse polarity protection: Autorecovery
Dry contact alarm signal: 1A relay






Model

Charging Voltage

Charging Current

Line Reg.

Load Reg.

Eff.

Over Voltage Protection

Boost

Float

AE1060C-12FC

14.7VDC

13.8VDC

5.0A Max.

±1%

±1%

84%

15~17VDC

AE1060C-24FC

29.4VDC

27.6VDC

2.5A Max.

±1%

±1%

85%

32~35VDC









Features

High power density

Universal input range

Convection cooled

RoHS compliance

3 - year warranty

Great reliability

DIN rail / Wall bracket mounting solution

Over voltage protection

Overload protection

Short circuit protection

Reverse polarity protection

3-stage charging control



Operating Environment

Operating temperature: -40 to 50 degrees

Operating humidity: non-condensing 5% to 95% relative humidity







Application
Smart 3-step charging control accomplish the charger not only charging a battery but lengthen life cycle
and advance efficiency of battery. Switching mode design features high power factor, high efficiency and
lightweight construction. Charging voltage ranged from 12VDC to 48VDC, Wattage ranged from 90W to 500W.
All models are compliant to RoHS.
